5x112 to 5x114 Adapter Stud Conversion Kit (VW - MK7/MK8)

Name: 5x112 to 5x114 Adapter Stud Conversion Kit (VW - MK7/MK8)
Brand: Motorsport Hardware
Price: 139.0 USD
Availability: InStock

Product variants

What Stud Size Do I Need?

The Adapter Stud Conversion only comes in one stud length.

78mm Stud - Up to 20mm Spacer

What Nut Style Do I Need?

There a few different options for Nuts. Choosing the right nut is very important given the wheel setup you have.

Ball Seat Nuts - If you are using wheels that are OEM or are OEM lug based, you will need a Ball Seat Nut. This describes the surface where the lug nut tightens against the wheel. If the surface as a curved, ball shape then you will need the ball seat nuts.

Conical Nuts - If you are using aftermarket wheels, you will typically see them using a conical seat surface. This seat surface will look like a cone shape vs. the curved ball shape.

MH Race Nuts - These are a conical seat nut so they need to be used with a conical seat wheel. These are special cold forged formed steel nuts that will give you the quality out of a proper nut, but also give you different look compared to a normal style nut.

Free Shipping for hardware orders over $100 (Within the U.S.)

$139.00 USD

Price Break Sold out

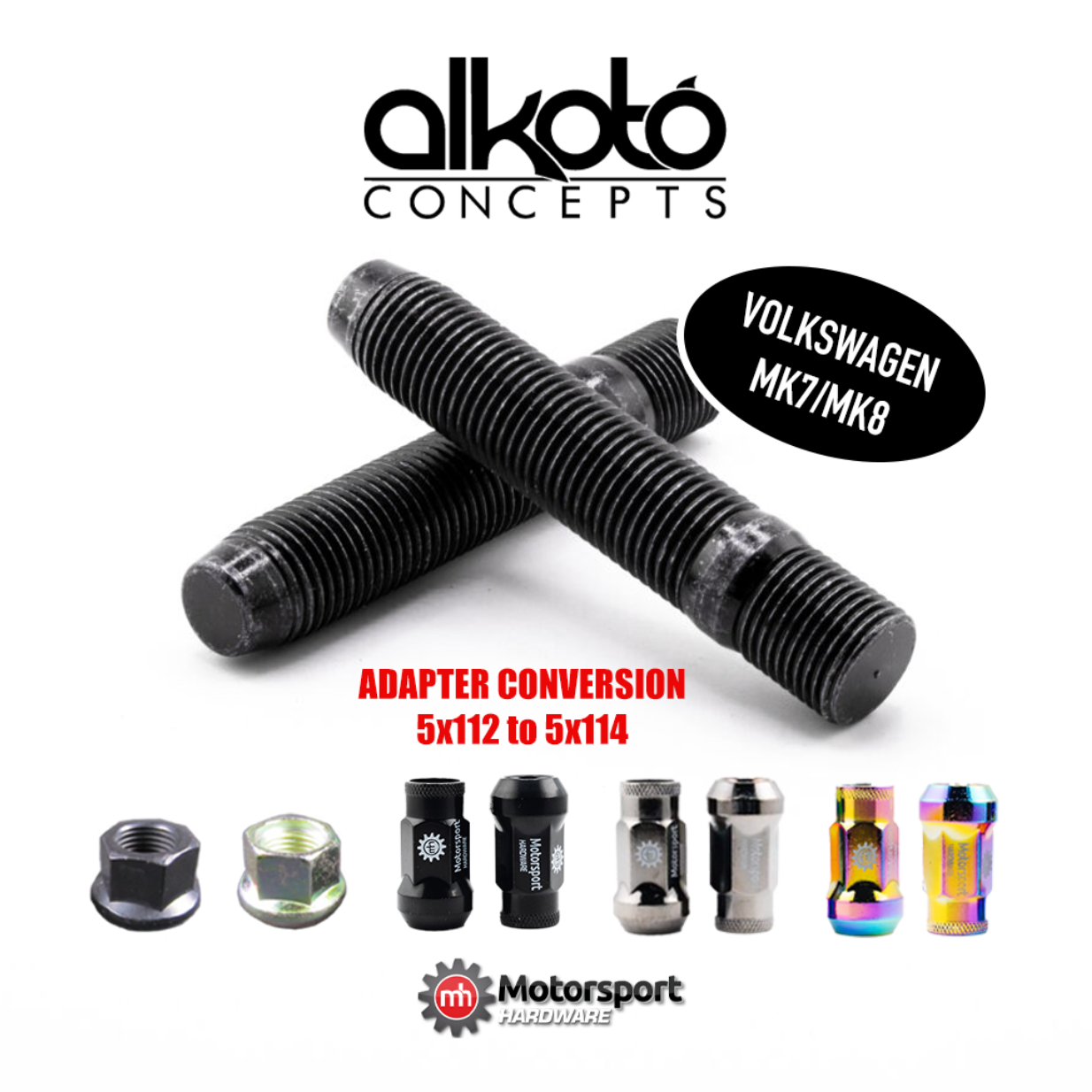

Introducing a 5x112 to 5x114 / M14x1.5 to M12x1.5 Adapter Stud Conversion for your MK7 and MK8 VW's. Having a german car, you'll typically see lug bolts instead of studs. This is where a stud conversion comes into play and it allows mounting and discounting the wheel a lot easier compared to lug bolts. This will also save your wheel hub from damage over time when putting on/off your wheels.

What's special about this kit is that these studs allow your 5x112 VW to run 5x114 wheels. It does this by using M14x1.5 thread going into your hub but then M12x1.5 thread coming out. What you will need to do on your 5x114 wheels is bore out the lug holes to M14 compared to the M12 size they normally come. With the larger M14 lug hole paired with the stud thread now being M12x1.5, it will allow your 5x114 to mount up.
